S
S
SERIES
POWER MEETS AFFORDABILITY
POWER MEETS AFFORDABILITY
POWER MEETS AFFORDABILITY
Payload up to
44 lbs
Payload up to
44 lbs
Payload up to
44 lbs
Max Speed up to
16.4 ft/s
Max Speed up to
16.4 ft/s
Max Speed up to
16.4 ft/s
Repeatability
0.05 mm
Repeatability
0.05 mm
Repeatability
0.05 mm

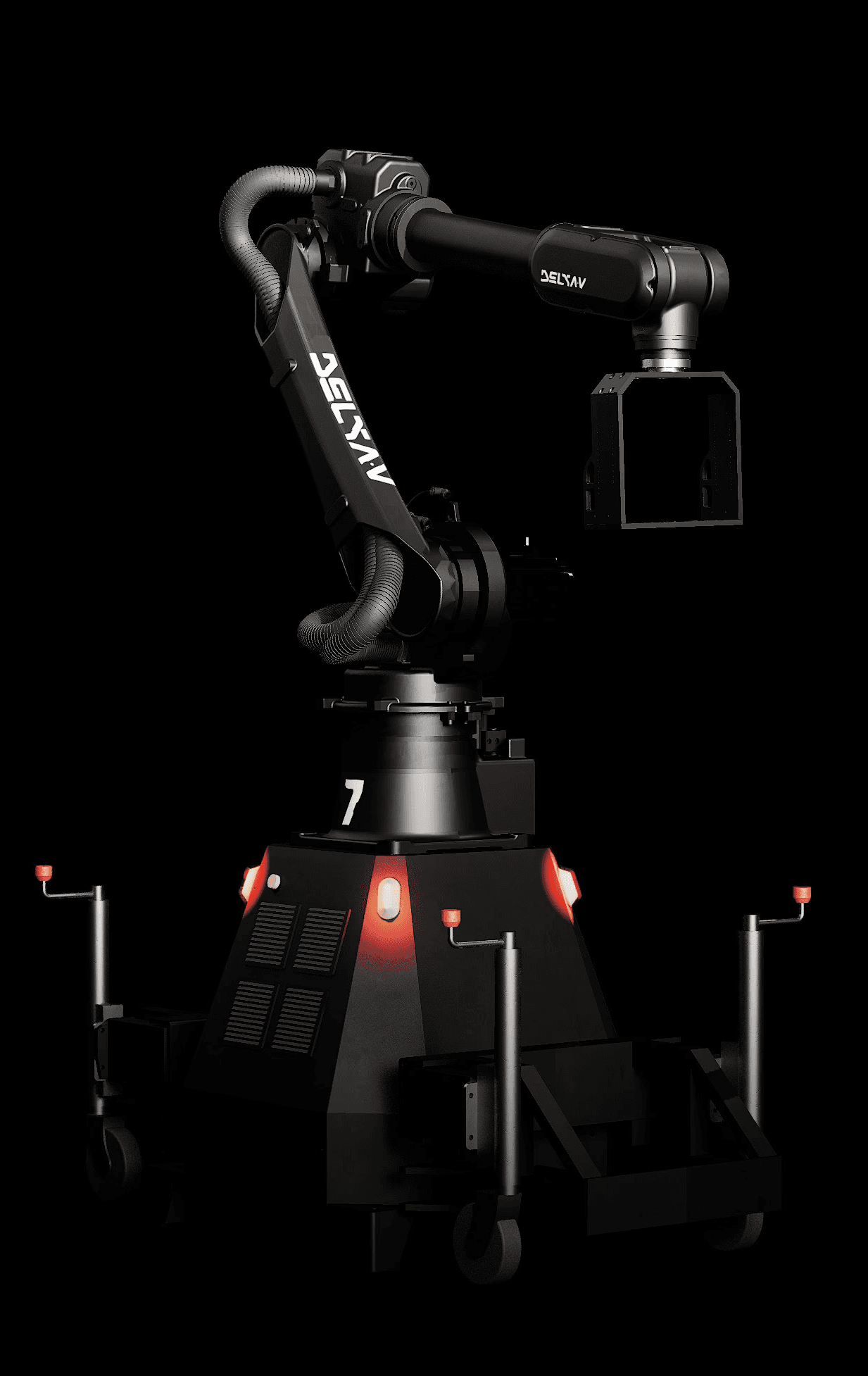

The S Series is a compact motion control robot engineered to elevate your film production. It offers high-end performance at an affordable price, and adapts to various filming scenarios to meet your needs.
The S Series is a compact motion control robot engineered to elevate your film production. It offers high-end performance at an affordable price, and adapts to various filming scenarios to meet your needs.
The S Series is a compact motion control robot engineered to elevate your film production. It offers high-end performance at an affordable price, and adapts to various filming scenarios to meet your needs.
KEY FEATURES
COMPACT INTEGRATED DESIGN
Integrated control cabinet for portability.
Fits through standard 36" doorways for easy transport & setup.
Improved range of camera movement thanks to internal cabling.
COMPACT INTEGRATED DESIGN
Integrated control cabinet for portability.
Fits through standard 36" doorways for easy transport & setup.
Improved range of camera movement thanks to internal cabling.
ADAPTS TO YOUR NEEDS
Controlled wirelessly using our FrameForge software.
Operate in sync with external devices, with camera position synchronized with virtual camera via FreeD.
Universal mounting cage can be attached at various angles.
Easily switched to be operated on tracks.
ADAPTS TO YOUR NEEDS
Controlled wirelessly using our FrameForge software.
Operate in sync with external devices, with camera position synchronized with virtual camera via FreeD.
Universal mounting cage can be attached at various angles.
Easily switched to be operated on tracks.
POWER & PERFORMANCE
Runs on standard home power supply.
Operates outdoor with long-lasting range on portable batteries (*not included).
All-day high-performance with low power consumption.
POWER & PERFORMANCE
Runs on standard home power supply.
Operates outdoor with long-lasting range on portable batteries (*not included).
All-day high-performance with low power consumption.
SPECIFICATIONS
DELTA-V S5
Payload
22 lbs
Payload
22 lbs
Spread Span
9'9"
Spread Span
9'9"
Max Speed
9.8 ft/s
Max Speed
9.8 ft/s
Repeatability
0.05 mm
Repeatability
0.05 mm
Max Height
8'10"
Max Height
8'10"
Lowest Position
10"
Lowest Position
10"
Typical Power
800W
Typical Power
800W
Voltage
120V 50/60Hz (±10%)
Voltage
120V 50/60Hz (±10%)
DELTA-V S7
Payload
44 lbs
Payload
44 lbs
Spread Span
14'4"
Spread Span
14'4"
Max Speed
16.4 ft/s
Max Speed
16.4 ft/s
Repeatability
0.05 mm
Repeatability
0.05 mm
Max Height
11'5"
Max Height
11'5"
Lowest Position
1/3"
Lowest Position
1/3"
Typical Power
1500W
Typical Power
1500W
Voltage
220V 50/60Hz (±10%)
Voltage
220V 50/60Hz (±10%)
