Carry
More.
Maximum Payload Capacity
485 lbs
Carry
More.
Maximum Payload Capacity
485 lbs
Carry
Carry
More.
More.
Maximum Payload Capacity
485 lbs
L
L
SERIES

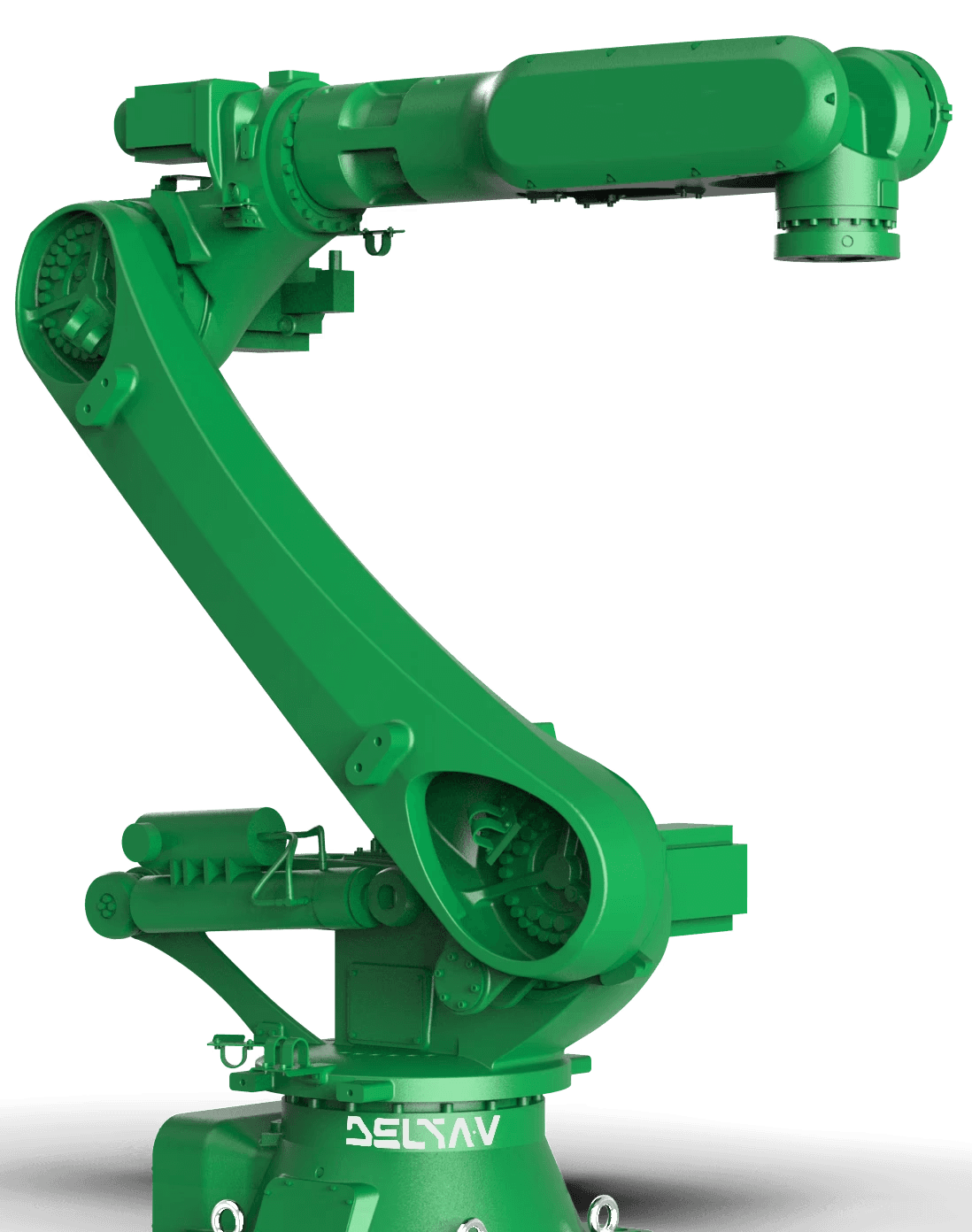

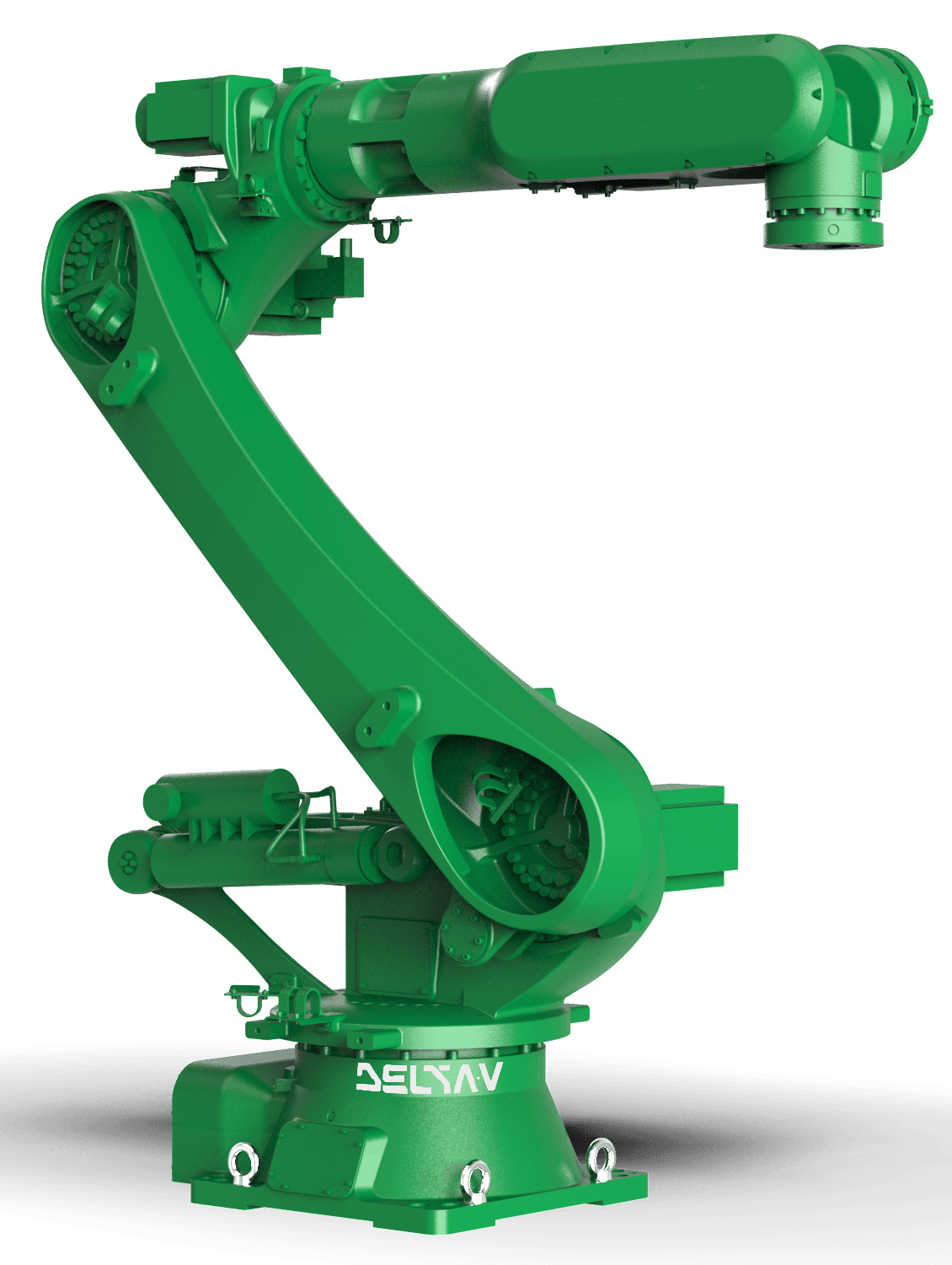

The L Series is a versatile motion control robot designed to handle heavy loads. It seamlessly adapts to various filming needs, from live-action special effects to large props and manned productions, consistently delivering top-tier performance.
The L Series is a versatile motion control robot designed to handle heavy loads. It seamlessly adapts to various filming needs, from live-action special effects to large props and manned productions, consistently delivering top-tier performance.
KEY FEATURES
HIGH PERFORMANCE
High-rigidity reducer minimizes interference from human movement, ensuring stability and safety.
Our global vibration suppression technology dampens vibrations, shortens positioning time, and enhances filming accuracy across multiple orientations.
HIGH PERFORMANCE
High-rigidity reducer minimizes interference from human movement, ensuring stability and safety.
Our global vibration suppression technology dampens vibrations, shortens positioning time, and enhances filming accuracy across multiple orientations.
HIGH PERFORMANCE
High-rigidity reducer minimizes interference from human movement, ensuring stability and safety.
Our global vibration suppression technology dampens vibrations, shortens positioning time, and enhances filming accuracy across multiple orientations.
CUSTOMIZATION
As part of our fully customizable service, the L Series can be tailored to your exact specifications.
Spec options include end-of-arm interface, load mount tools, body coating, power supply, and base fixture.
We provide software customization and hardware installation support.
CUSTOMIZATION
As part of our fully customizable service, the L Series can be tailored to your exact specifications.
Spec options include end-of-arm interface, load mount tools, body coating, power supply, and base fixture.
We provide software customization and hardware installation support.
CUSTOMIZATION
As part of our fully customizable service, the L Series can be tailored to your exact specifications.
Spec options include end-of-arm interface, load mount tools, body coating, power supply, and base fixture.
We provide software customization and hardware installation support.
OPERATION
Cables are concealed inside the arm to avoid tangling.
IP65 weather protection rating allows for outdoor use.
Supports synchronized control of up to 3 robots, making it perfect for complex filming needs.
OPERATION
Cables are concealed inside the arm to avoid tangling.
IP65 weather protection rating allows for outdoor use.
Supports synchronized control of up to 3 robots, making it perfect for complex filming needs.
OPERATION
Cables are concealed inside the arm to avoid tangling.
IP65 weather protection rating allows for outdoor use.
Supports synchronized control of up to 3 robots, making it perfect for complex filming needs.
SAFETY
An independent safety controller monitoring 300+ data points in real time.
Automatic emergency stop with a reaction time <50ms, ensuring optimal safety during operation.
SAFETY
An independent safety controller monitoring 300+ data points in real time.
Automatic emergency stop with a reaction time <50ms, ensuring optimal safety during operation.
SAFETY
An independent safety controller monitoring 300+ data points in real time.
Automatic emergency stop with a reaction time <50ms, ensuring optimal safety during operation.
SPECIFICATIONS
DELTA-V L HD
Payload
485 lbs
Payload
485 lbs
Payload
485 lbs
Arm Reach
8'10"
Arm Reach
8'10"
Arm Reach
8'10"
Max Speed
18.04 ft/s
Max Speed
18.04 ft/s
Max Speed
18.04 ft/s
Repeatability
0.07 mm
Repeatability
0.07 mm
Repeatability
0.07 mm
Typical Power
16kW
Typical Power
16kW
Typical Power
16kW
IP Protection Rating
IP65
IP Protection Rating
IP65
IP Protection Rating
IP65
IP Protection Rating @ Wrist
IP67
IP Protection Rating @ Wrist
IP67
IP Protection Rating @ Wrist
IP67
DELTA-V L ST
Payload
330 lbs
Payload
330 lbs
Payload
330 lbs
Arm Reach
10'6"
Arm Reach
10'6"
Arm Reach
10'6"
Max Speed
24.6 ft/s
Max Speed
24.6 ft/s
Max Speed
24.6 ft/s
Repeatability
0.07 mm
Repeatability
0.07 mm
Repeatability
0.07 mm
Typical Power
14kW
Typical Power
14kW
Typical Power
14kW
IP Protection Rating
IP65
IP Protection Rating
IP65
IP Protection Rating
IP65
IP Protection Rating @ Wrist
IP67
IP Protection Rating @ Wrist
IP67
IP Protection Rating @ Wrist
IP67
