C5

C5

Lite

Lite

WITH MORE OPPORTUNITIES

Low Drag Resistance

High Repeatability

Interchangeable Base

A compact, versatile Drag & Drop motion control robot designed for a wide range of production needs. Its user-friendly and multifunctional design is enhanced with a Mitchell base and various mounting accessories. A standout feature is the electromagnetic brake system, which provides a rapid stop without any drop, ensuring maximum safety and stability during operation. The C5-Lite delivers high-end performance, aimed at simplifying and optimizing a variety of filming scenarios.

KEY FEATURES

USER FRIENDLY
  • Force-controlled drag and drop, enabling easy movement with 1N of force and consistent resistance.

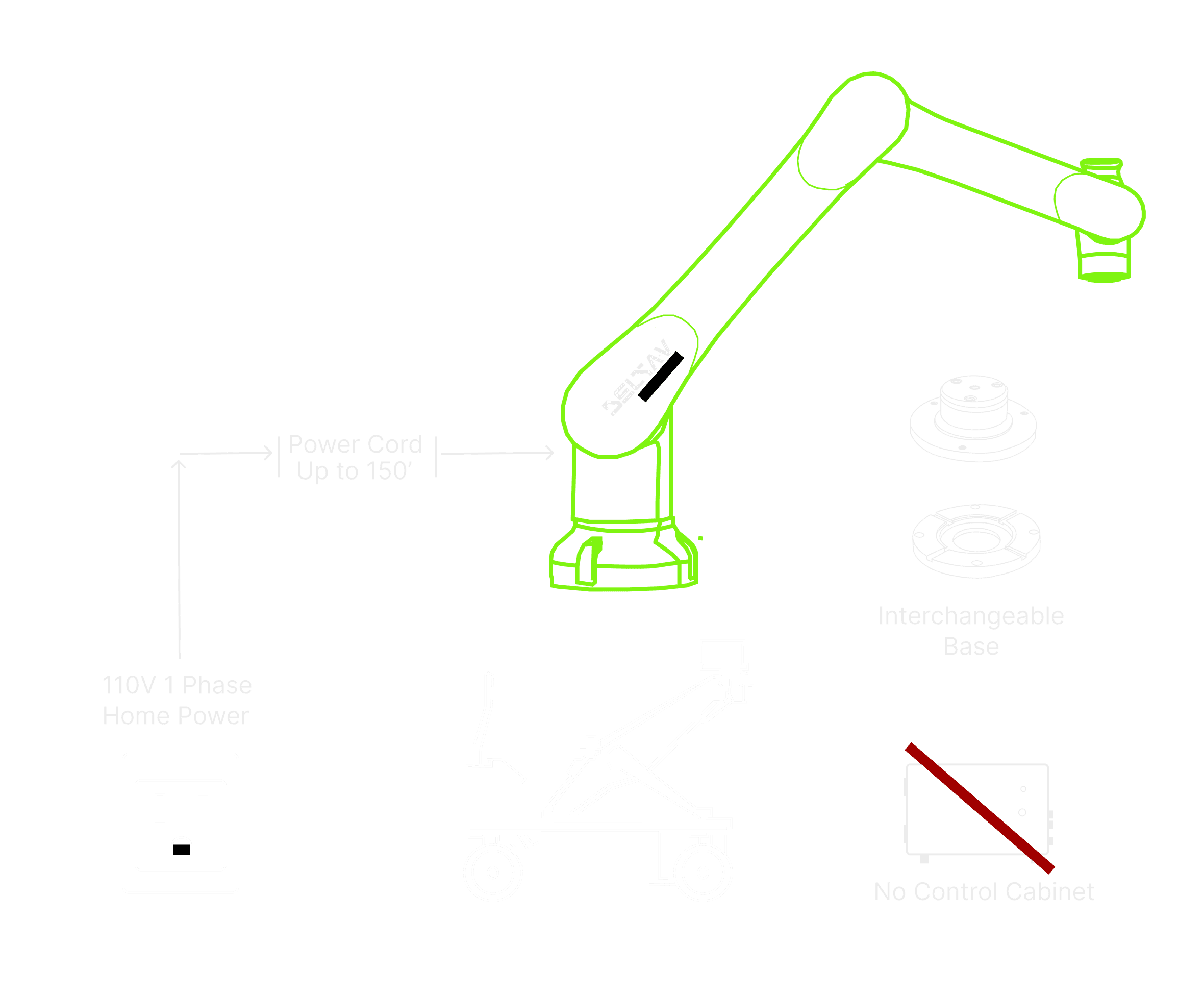

  • Interchangeable base and no control cabinet for variety of mounting option.

  • Global path recording and playback up to 10mins enables extremely complex movement

USER FRIENDLY
  • Force-controlled drag and drop, enabling easy movement with 1N of force and consistent resistance.

  • Interchangeable base and no control cabinet for variety of mounting option.

  • Global path recording and playback up to 10mins enables extremely complex movement

SAFETY
  • The independent safety controller monitors operational parameters in real time, emergency response activation in under 50ms.

  • Electromagnetic brake provide a rapid stop without any drop.

  • Collision detection based on force control technology.

SAFETY
  • The independent safety controller monitors operational parameters in real time, emergency response activation in under 50ms.

  • Electromagnetic brake provide a rapid stop without any drop.

  • Collision detection based on force control technology.

POWER & PERFORMANCE
  • Runs on standard 110V home power for easy deployment.

  • All joints have a ±360° range, extending the range of motion.

  • Global Vibration suppression for smoother motion

POWER & PERFORMANCE
  • Runs on standard 110V home power for easy deployment.

  • All joints have a ±360° range, extending the range of motion.

  • Global Vibration suppression for smoother motion

SPECIFICATIONS

DELTA-V C5 Lite

Payload

26.4 lbs

Payload

26.4 lbs

Spread Span

4'8"

Spread Span

4'8"

Max Speed

9.8 ft/s

Max Speed

9.8 ft/s

Repeatability

0.03 mm

Repeatability

0.03 mm

Max Height

Base + 4'8"

Max Height

Base + 4'8"

Lowest Position

Base - 4'8"

Lowest Position

Base - 4'8"

Typical Power

450W

Typical Power

450W

Voltage

AC 90-264V 47-63Hz / DC 48V

Voltage

AC 90-264V 47-63Hz / DC 48V
