C
SERIES
C
SERIES
C
C
SERIES
COMPACT BUT POWERFUL
COMPACT BUT POWERFUL

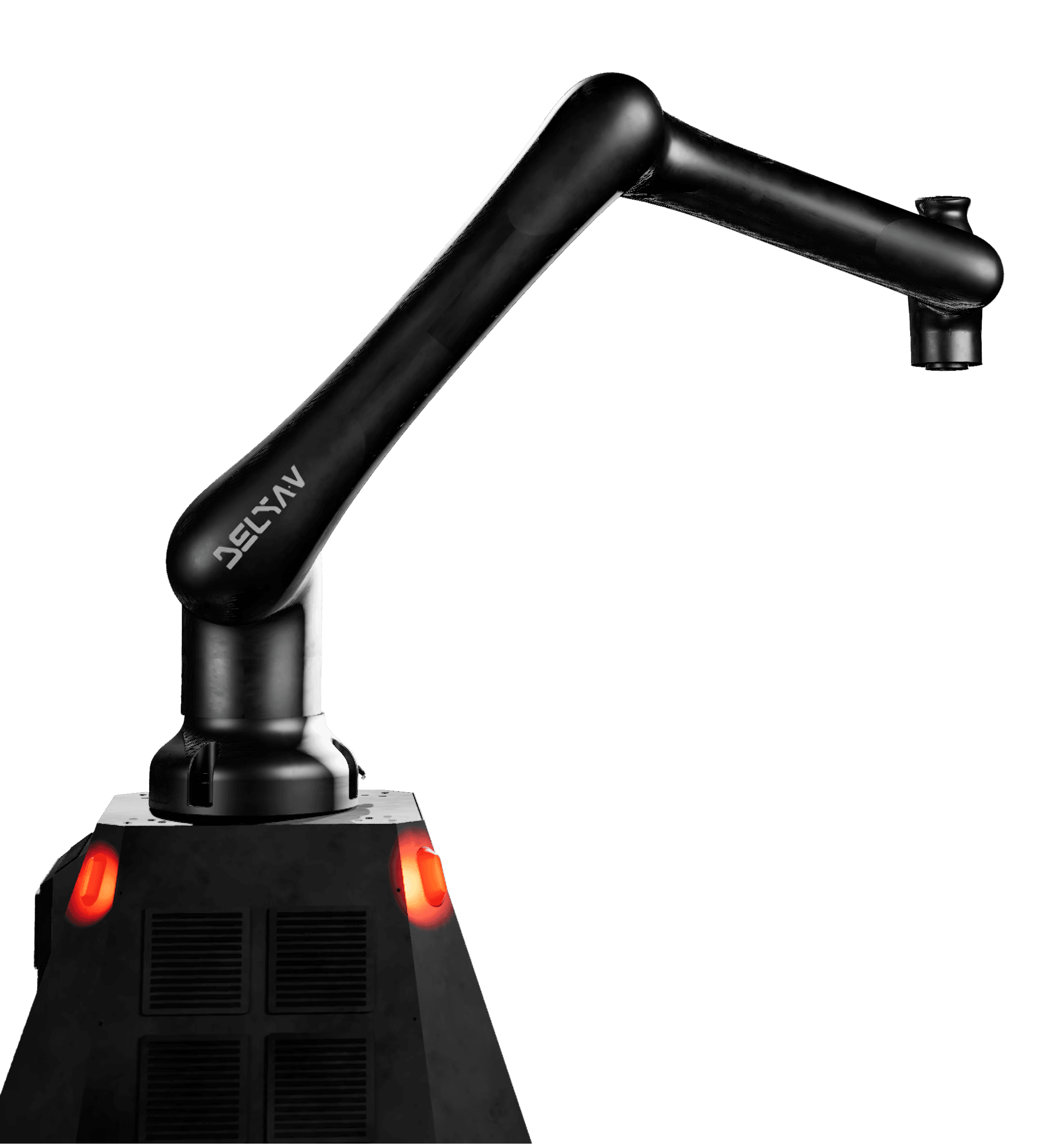

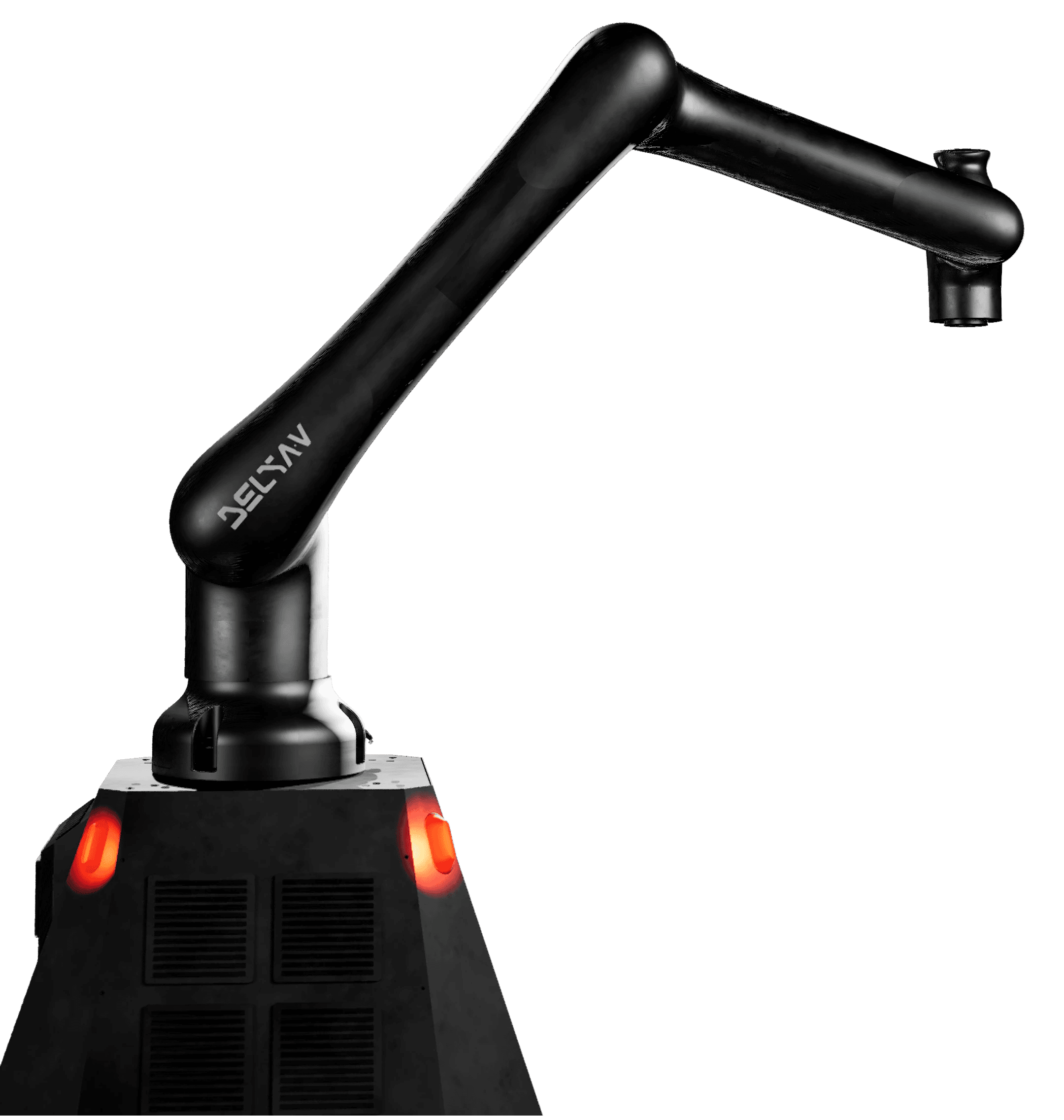

The C5 and C6 are motion control solutions with teach-and-replay functionality. Users have the option to teach the robot by dragging the arm and camera into positions. The robot can then replay the recorded motion for precise filming.
The C5 and C6 are motion control solutions with teach-and-replay functionality. Users have the option to teach the robot by dragging the arm and camera into positions. The robot can then replay the recorded motion for precise filming.
KEY FEATURES
USER FRIENDLY
Force-controlled drag and drop, enabling easy movement with 1N of force and consistent resistance.
Global path recording and playback up to 10mins enables extremely complex movement
USER FRIENDLY
Force-controlled drag and drop, enabling easy movement with 1N of force and consistent resistance.
Global path recording and playback up to 10mins enables extremely complex movement
USER FRIENDLY
Force-controlled drag and drop, enabling easy movement with 1N of force and consistent resistance.
Global path recording and playback up to 10mins enables extremely complex movement
DRAG AND DROP TRACKS
Drag & Drop tracks allowing for unlimited length extensions, and the robotic arm on the tracks can be easily drag and drop.
Capable of reaching a total speed of 19.68ft/s, including the movement of the robotic arm.
DRAG AND DROP TRACKS
Drag & Drop tracks allowing for unlimited length extensions, and the robotic arm on the tracks can be easily drag and drop.
Capable of reaching a total speed of 19.68ft/s, including the movement of the robotic arm.
DRAG AND DROP TRACKS
Drag & Drop tracks allowing for unlimited length extensions, and the robotic arm on the tracks can be easily drag and drop.
Capable of reaching a total speed of 19.68ft/s, including the movement of the robotic arm.
OPERATION
Runs on standard 110V home power for easy deployment.
Global Vibration suppression for smoother motion
OPERATION
Runs on standard 110V home power for easy deployment.
Global Vibration suppression for smoother motion
OPERATION
Runs on standard 110V home power for easy deployment.
Global Vibration suppression for smoother motion
SAFETY
The independent safety controller monitors operational parameters in real time, emergency response activation in under 50ms.
Collision detection based on force control technology
Electromagnetic brake provide a rapid stop without any drop.
SAFETY
The independent safety controller monitors operational parameters in real time, emergency response activation in under 50ms.
Collision detection based on force control technology
Electromagnetic brake provide a rapid stop without any drop.
SAFETY
The independent safety controller monitors operational parameters in real time, emergency response activation in under 50ms.
Collision detection based on force control technology
Electromagnetic brake provide a rapid stop without any drop.
SPECIFICATIONS
DELTA-V C5
Payload
26.4 lbs
Payload
26.4 lbs
Payload
26.4 lbs
Arm Reach
4' 8"
Arm Reach
4' 8"
Arm Reach
4' 8"
Max Speed
9.8 ft/s
Max Speed
9.8 ft/s
Max Speed
9.8 ft/s
Repeatability
0.03 mm
Repeatability
0.03 mm
Repeatability
0.03 mm
Max Height
8' 3"
Max Height
8' 3"
Max Height
8' 3"
Lowest Position
0
Lowest Position
0
Lowest Position
0
Typical Power
850W (with track)
Typical Power
850W (with track)
Typical Power
850W (with track)
Voltage
AC 90-264V 47-63Hz
Voltage
AC 90-264V 47-63Hz
Voltage
AC 90-264V 47-63Hz
Total Speed
19.68 ft/s
Total Speed
19.68 ft/s
Total Speed
19.68 ft/s
DELTA-V C6
Payload
44 lbs
Payload
44 lbs
Payload
44 lbs
Arm Reach
5' 10"
Arm Reach
5' 10"
Arm Reach
5' 10"
Max Speed
11.5 ft/s
Max Speed
11.5 ft/s
Max Speed
11.5 ft/s
Repeatability
0.03 mm
Repeatability
0.03 mm
Repeatability
0.03 mm
Max Height
9' 6"
Max Height
9' 6"
Max Height
9' 6"
Lowest Position
0
Lowest Position
0
Lowest Position
0
Typical Power
1300W (with track)
Typical Power
1300W (with track)
Typical Power
1300W (with track)
Voltage
AC 90-264V 47-63Hz
Voltage
AC 90-264V 47-63Hz
Voltage
AC 90-264V 47-63Hz
Total Speed
21.3 ft/s
Total Speed
21.3 ft/s
Total Speed
21.3 ft/s
